R Avancé

# R Avancé
## ⚔<br/>de la donnée rangée à sa visualisation
### Rémi Dumas
### Insee - Établissement de Bordeaux
### 2019/12/12 (updated: 2020-03-06)

---

# Les données ordonnées

**Hadley Wickham** est *Chief Scientist* à **RStudio** et professeur adjoint de statistiques à l’Université d’*Auckland*. Tout au long de sa carrière, il s'est heurté à des datasets désordonnés. Ainsi, en 2014, il publie « Tidy Data », article de référence qui établit clairement ce qu’est un jeu de données « propre ».

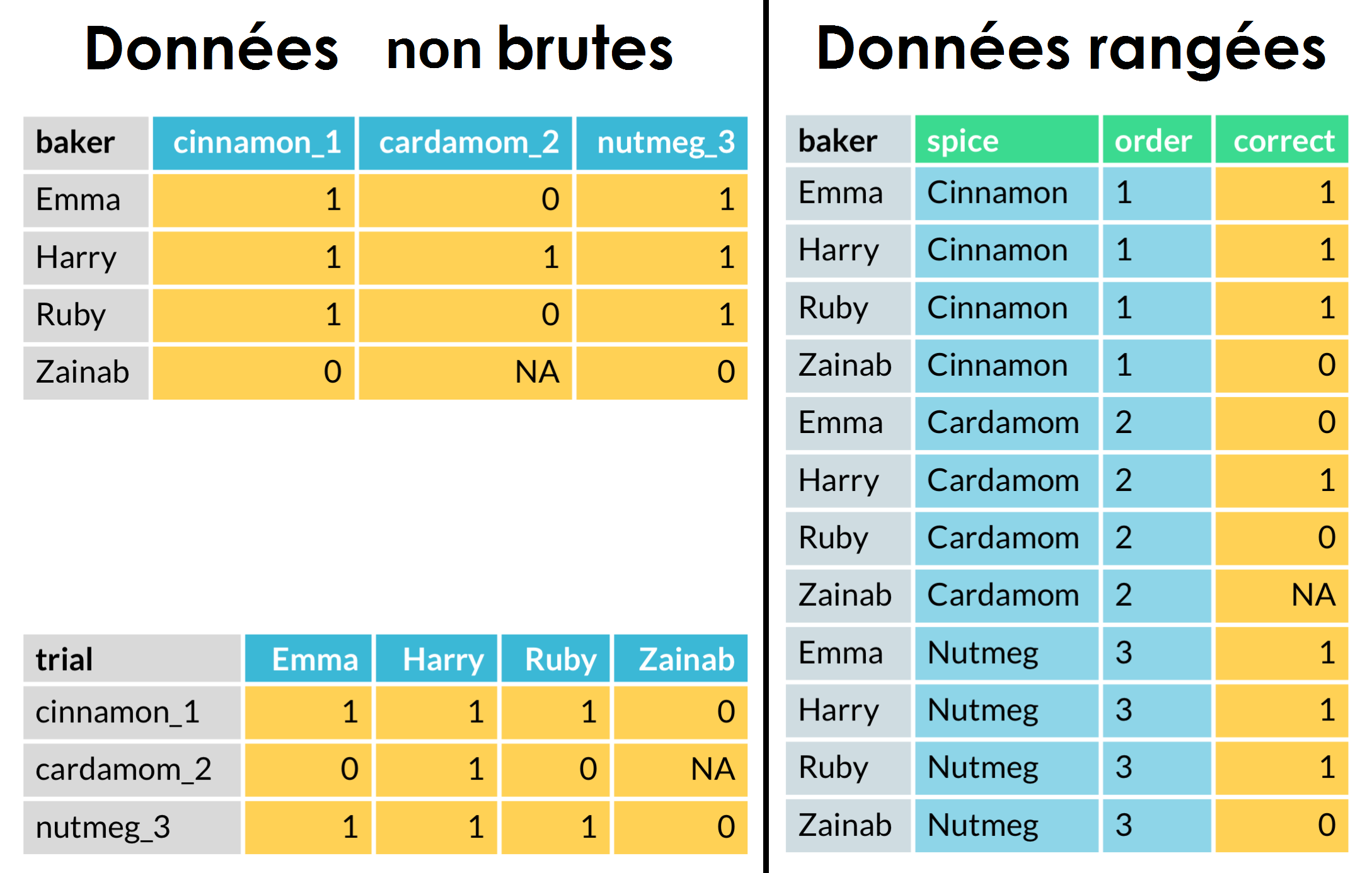

un jeu de données est propre quand :
.right-column[![Données brute-rangées](images/tame_tidy.png)]
* **chaque variable se trouve dans une colonne**
* **chaque observation compose une ligne**
* **les éléments sont contenus dans le même dataset**

---
class: inverse, center, middle

# Par exemple

---
class: left

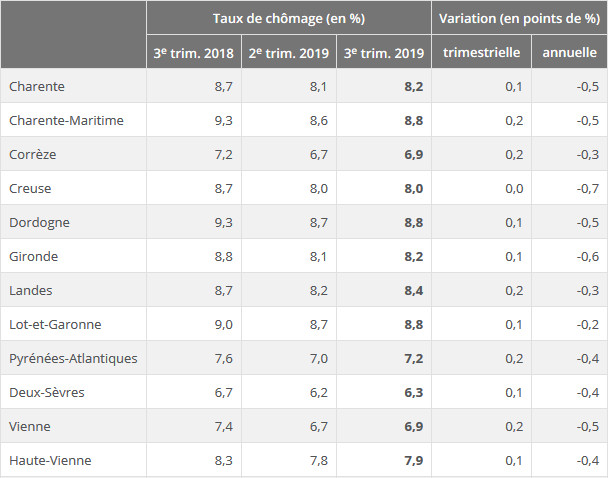

# Un tableau sur Insee.fr

<table class="table table-striped table-hover" style="font-size: 16px; margin-left: auto; margin-right: auto;">
<caption style="font-size: initial !important;">Taux de chomage localisé des départements de Nouvelle-Aquitaine (en %)</caption>
 <thead>
  <tr>
   <th style="text-align:left;"> Code </th>
   <th style="text-align:left;"> Libellé </th>
   <th style="text-align:right;"> T3_2018 </th>
   <th style="text-align:right;"> T2_2019 </th>
   <th style="text-align:right;"> T3_2019 </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> 16 </td>
   <td style="text-align:left;"> CHARENTE </td>
   <td style="text-align:right;"> 8.7 </td>
   <td style="text-align:right;"> 8.1 </td>
   <td style="text-align:right;"> 8.2 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 17 </td>
   <td style="text-align:left;"> CHARENTE-MARITIME </td>
   <td style="text-align:right;"> 9.3 </td>
   <td style="text-align:right;"> 8.6 </td>
   <td style="text-align:right;"> 8.8 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 19 </td>
   <td style="text-align:left;"> CORREZE </td>
   <td style="text-align:right;"> 7.2 </td>
   <td style="text-align:right;"> 6.7 </td>
   <td style="text-align:right;"> 6.9 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 23 </td>
   <td style="text-align:left;"> CREUSE </td>
   <td style="text-align:right;"> 8.7 </td>
   <td style="text-align:right;"> 8.0 </td>
   <td style="text-align:right;"> 8.0 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 24 </td>
   <td style="text-align:left;"> DORDOGNE </td>
   <td style="text-align:right;"> 9.3 </td>
   <td style="text-align:right;"> 8.7 </td>
   <td style="text-align:right;"> 8.8 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 33 </td>
   <td style="text-align:left;"> GIRONDE </td>
   <td style="text-align:right;"> 8.8 </td>
   <td style="text-align:right;"> 8.1 </td>
   <td style="text-align:right;"> 8.2 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 40 </td>
   <td style="text-align:left;"> LANDES </td>
   <td style="text-align:right;"> 8.7 </td>
   <td style="text-align:right;"> 8.2 </td>
   <td style="text-align:right;"> 8.4 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 47 </td>
   <td style="text-align:left;"> LOT-ET-GARONNE </td>
   <td style="text-align:right;"> 9.0 </td>
   <td style="text-align:right;"> 8.7 </td>
   <td style="text-align:right;"> 8.8 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 64 </td>
   <td style="text-align:left;"> PYRENEES-ATLANTIQUES </td>
   <td style="text-align:right;"> 7.6 </td>
   <td style="text-align:right;"> 7.0 </td>
   <td style="text-align:right;"> 7.2 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 79 </td>
   <td style="text-align:left;"> DEUX-SEVRES </td>
   <td style="text-align:right;"> 6.7 </td>
   <td style="text-align:right;"> 6.2 </td>
   <td style="text-align:right;"> 6.3 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 86 </td>
   <td style="text-align:left;"> VIENNE </td>
   <td style="text-align:right;"> 7.4 </td>
   <td style="text-align:right;"> 6.7 </td>
   <td style="text-align:right;"> 6.9 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 87 </td>
   <td style="text-align:left;"> HAUTE-VIENNE </td>
   <td style="text-align:right;"> 8.3 </td>
   <td style="text-align:right;"> 7.8 </td>
   <td style="text-align:right;"> 7.9 </td>
  </tr>
</tbody>
</table>

.footnote[
  [1] Source: Insee, chômage au sens du BIT

  [2] Les données du dernier trimestre sont provisoires
  ]

---
class: left
# Traiter les données des tableaux

Comment calculer les évolutions trimestrielles et/ou annuelles pour un tableau, un graphique, une carte ...

```r
tx_chom_75 %>%
  mutate(
    'Evolution trimestrielle' = round(100 * (T3_2019/T2_2019 - 1) , 1)
    )
```

<table class="table table-striped table-hover" style="font-size: 12px; margin-left: auto; margin-right: auto;">
<caption style="font-size: initial !important;">Taux de chomage localisé des départements de Nouvelle-Aquitaine (en %)</caption>
 <thead>
  <tr>
   <th style="text-align:left;"> Code </th>
   <th style="text-align:left;"> Libellé </th>
   <th style="text-align:right;"> T3_2018 </th>
   <th style="text-align:right;"> T2_2019 </th>
   <th style="text-align:right;"> T3_2019 </th>
   <th style="text-align:right;"> Evolution trimestrielle </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> 16 </td>
   <td style="text-align:left;"> CHARENTE </td>
   <td style="text-align:right;"> 8.7 </td>
   <td style="text-align:right;"> 8.1 </td>
   <td style="text-align:right;"> 8.2 </td>
   <td style="text-align:right;"> 1.2 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 17 </td>
   <td style="text-align:left;"> CHARENTE-MARITIME </td>
   <td style="text-align:right;"> 9.3 </td>
   <td style="text-align:right;"> 8.6 </td>
   <td style="text-align:right;"> 8.8 </td>
   <td style="text-align:right;"> 2.3 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 19 </td>
   <td style="text-align:left;"> CORREZE </td>
   <td style="text-align:right;"> 7.2 </td>
   <td style="text-align:right;"> 6.7 </td>
   <td style="text-align:right;"> 6.9 </td>
   <td style="text-align:right;"> 3.0 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 23 </td>
   <td style="text-align:left;"> CREUSE </td>
   <td style="text-align:right;"> 8.7 </td>
   <td style="text-align:right;"> 8.0 </td>
   <td style="text-align:right;"> 8.0 </td>
   <td style="text-align:right;"> 0.0 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 24 </td>
   <td style="text-align:left;"> DORDOGNE </td>
   <td style="text-align:right;"> 9.3 </td>
   <td style="text-align:right;"> 8.7 </td>
   <td style="text-align:right;"> 8.8 </td>
   <td style="text-align:right;"> 1.1 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 33 </td>
   <td style="text-align:left;"> GIRONDE </td>
   <td style="text-align:right;"> 8.8 </td>
   <td style="text-align:right;"> 8.1 </td>
   <td style="text-align:right;"> 8.2 </td>
   <td style="text-align:right;"> 1.2 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 40 </td>
   <td style="text-align:left;"> LANDES </td>
   <td style="text-align:right;"> 8.7 </td>
   <td style="text-align:right;"> 8.2 </td>
   <td style="text-align:right;"> 8.4 </td>
   <td style="text-align:right;"> 2.4 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 47 </td>
   <td style="text-align:left;"> LOT-ET-GARONNE </td>
   <td style="text-align:right;"> 9.0 </td>
   <td style="text-align:right;"> 8.7 </td>
   <td style="text-align:right;"> 8.8 </td>
   <td style="text-align:right;"> 1.1 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 64 </td>
   <td style="text-align:left;"> PYRENEES-ATLANTIQUES </td>
   <td style="text-align:right;"> 7.6 </td>
   <td style="text-align:right;"> 7.0 </td>
   <td style="text-align:right;"> 7.2 </td>
   <td style="text-align:right;"> 2.9 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 79 </td>
   <td style="text-align:left;"> DEUX-SEVRES </td>
   <td style="text-align:right;"> 6.7 </td>
   <td style="text-align:right;"> 6.2 </td>
   <td style="text-align:right;"> 6.3 </td>
   <td style="text-align:right;"> 1.6 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 86 </td>
   <td style="text-align:left;"> VIENNE </td>
   <td style="text-align:right;"> 7.4 </td>
   <td style="text-align:right;"> 6.7 </td>
   <td style="text-align:right;"> 6.9 </td>
   <td style="text-align:right;"> 3.0 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 87 </td>
   <td style="text-align:left;"> HAUTE-VIENNE </td>
   <td style="text-align:right;"> 8.3 </td>
   <td style="text-align:right;"> 7.8 </td>
   <td style="text-align:right;"> 7.9 </td>
   <td style="text-align:right;"> 1.3 </td>
  </tr>
</tbody>
</table>

Problème: Lorsque les colonnes changeront, il faudra réecrire la formule de calcul.

---
class: inverse, center, middle
# Pré-requis

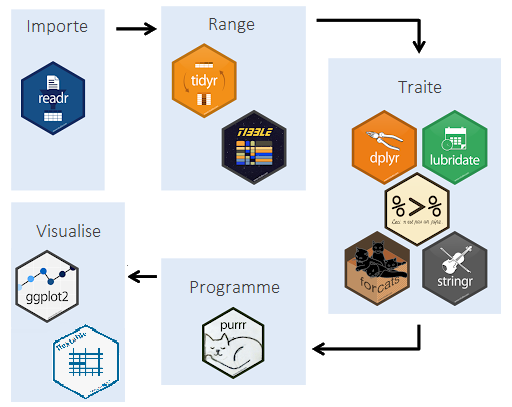

###Importer et traiter les données
<center>

![Le cycle des données](images/data_cycle.png)

</center>

---
class: left
# Charger des données

### au format R natif
- format RDS (un seul objet)

```r
readRDS("my_data.rds")
```
--
- format RData (plusieurs objets)

```r
load("my_data.RData")
```

--
### import de fichiers SAS
- le package **haven**

```r
data <- read_sas("my_data.sas7bdat")
```

--
### import de fichiers csv
- le package **readr**

```r
data <- read_csv2("my_data.csv")
```

---
class: left
# Charger des données(2)

### import de fichiers ods
- le package **readODS**

```r
data <- read_ods("my_data.ods")
```

--
### import de fichiers xls
- le package **readxl**

```r
data <- read_xls("my_data.xls")
```
--
- le package **xlsx**

```r
data <- read.xlsx("my_data.xlsx")
```

---
class: left
# Exporter des données vers un fichier

### au format R natif
- format RDS (un seul objet)

```r
saveRDS(my_data, file = "my_data.rds")
```
--
- format RData (plusieurs objets)

```r
save(data1, data2, "my_data.RData")
save.image("my_data.RData") ## sauve tout l'environnement de travail
```

--
### export de fichiers SAS
- le package **haven**

```r
write_sas(data, path = "my_data.sas7bdat")
```

---
class: left
# Exporter des données vers un fichier(2)

--
### export de fichiers csv
- le package **readr**

```r
write_csv2(data, path = "my_data.csv")
```
--
### export de fichiers ods
- le package **readODS**

```r
write_ods(data, "my_data.ods")
```
--
### export de fichiers xls
- le package **xlsx**

```r
write.xlsx2(data, file = "my_data.xlsx")
```

---
class: left
# Les variables

### Les types

- **Numérique**: *0, -1, 3.4, 6.789456*
- **Booléen**: *TRUE, FALSE* ou *T,F*
- **Caractère**: *"anticonstitutionnellment"*
- **Date**: *2008-12-25*

```r
class(pi)
```

```
## [1] "numeric"
```

--
### L'opérateur d'assignation <- ( raccourci: *Alt + 6* )

```r
a <- pi
b <- "vaut environ 3,14"
c <- Sys.Date()
a
```

```
## [1] 3.141593
```

```r
b
```

```
## [1] "vaut environ 3,14"
```

```r
c
```

```
## [1] "2020-03-06"
```

---
class: left
# Les variables numériques

### Les opérations arithmétiques
** +  , -  , \*  ,  /  , ^  , %% ,  %/% **
### Les fonctions mathématiques
** sin ,  cos  , tan  , log ,  sqrt** etc ...
### Les fonctions statistiques
** mean , median  , quantile  , sum  , min  , max ** etc ...

### Les opérateurs logiques
- ** < , <= , > , => , == , != **
- ** | ** (OU)
- ** & ** (ET)
- ** isTRUE() , is.numeric() , is.logical() , is.character() , is.Date() , is.null() , is.na() **

---
class: left
# Les chaines de caractères

### La concaténation
** paste() ** et ** paste0() **

```r
a <- "Insee"
b <- "Mesurer pour comprendre "
paste(a, "-", b)
```

```
## [1] "Insee - Mesurer pour comprendre "
```

```r
paste0(a, "2025")
```

```
## [1] "Insee2025"
```

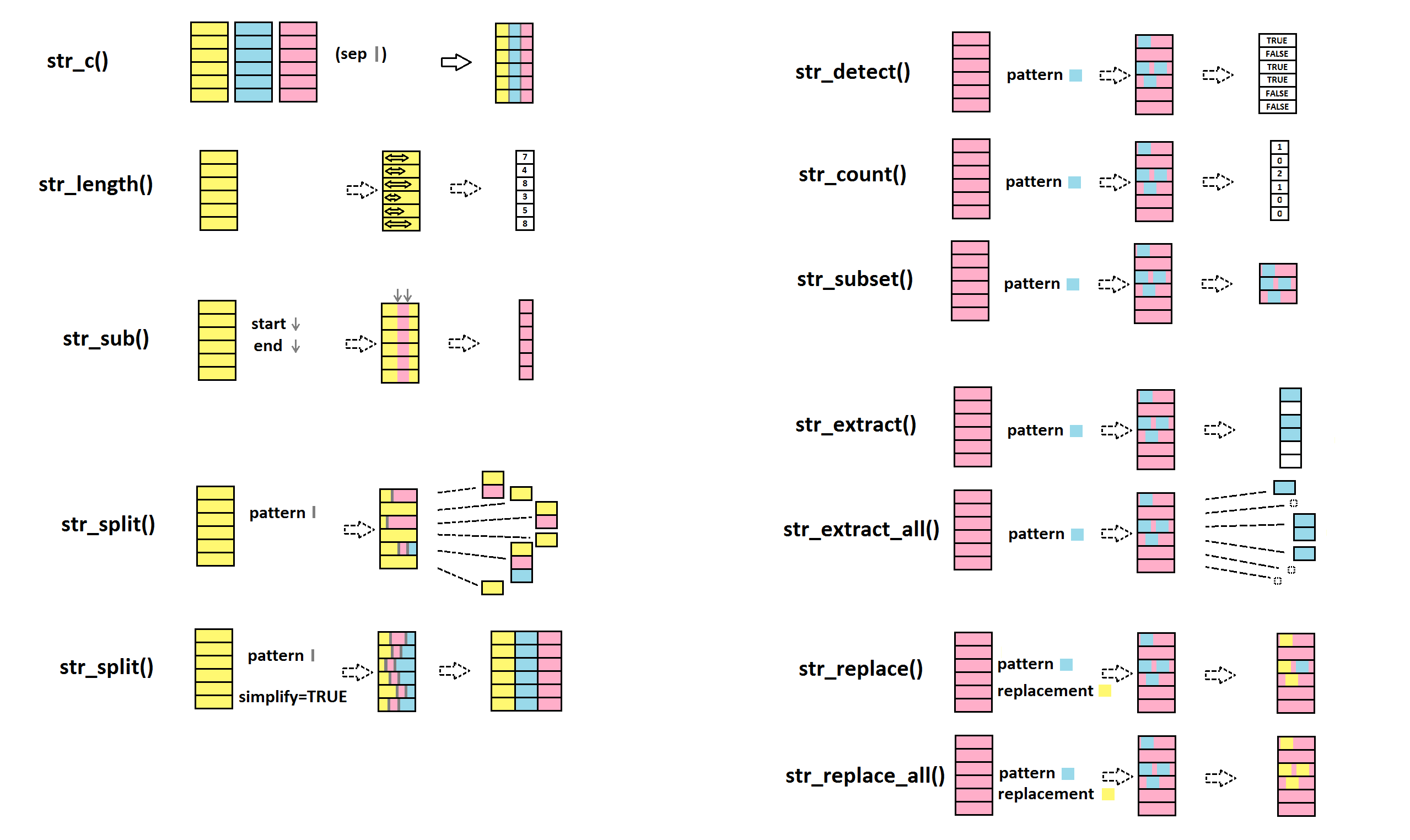

### Le package *stringr*

```r
str_trim(b)
```

```
## [1] "Mesurer pour comprendre"
```

```r
str_sub(a,1,3)
```

```
## [1] "Ins"
```

```r
str_replace_all(b , "e", "_")
```

```
## [1] "M_sur_r pour compr_ndr_ "
```

```r
str_split(b , " ")
```

```
## [[1]]
## [1] "Mesurer"    "pour"       "comprendre" ""
```

.footnote[(http://perso.ens-lyon.fr/lise.vaudor/Descriptoire/_book/manipuler-des-strings-package-stringr.html)]

---
class: left
# Les vecteurs

### La fonction collecteur: *c()*

```r
vec_num <- c(122,154,132,141,147,112)
vec_num*1.5
```

```
## [1] 183.0 231.0 198.0 211.5 220.5 168.0
```

```r
vec_ch <- c("Pierre", "Paul", "Jean", "Jacques", "Magali")
vec_ch2 <- c(vec_ch, "Nathalie")

mean(vec_num) # taille moyenne des élements du vec_num
```

```
## [1] 134.6667
```

```r
vec_num2 <- c(vec_num, "John")
class(vec_num)
```

```
## [1] "numeric"
```

```r
paste(vec_ch2,"mesure",vec_num,"cm")[1:3]
```

```
## [1] "Pierre mesure 122 cm" "Paul mesure 154 cm"   "Jean mesure 132 cm"
```

---
class: left
# Les dataframes

### Créer un dataframe: la fonction *data.frame()*

```r
df <- data.frame(
  nom = c("Lambert", "Doussain", "Niang", "Gérard", "Laporte", "Herrand"),
  ville = c("Bordeaux", "Marseille", "Paris", "Bordeaux", "Paris", "Paris"),
  conjoint1 = c(1200, 1180, 1750, 2100, 1350, 1100),
  conjoint2 = c(1450, 1870, 1690, NA, 2350, NA),
  nb_personnes = c(4, 2, 3, 2, 5, 1),
  stringsAsFactors = F # pour ne pas avoir de facteurs
)
df
```

```
##        nom     ville conjoint1 conjoint2 nb_personnes
## 1  Lambert  Bordeaux      1200      1450            4
## 2 Doussain Marseille      1180      1870            2
## 3    Niang     Paris      1750      1690            3
## 4   Gérard  Bordeaux      2100        NA            2
## 5  Laporte     Paris      1350      2350            5
## 6  Herrand     Paris      1100        NA            1
```
---
class: left
# Les dataframes(2)

### Extraire des lignes, extraire des colonnes

```r
df[1,2] # ligne 1, colonne 2
```

```
## [1] "Bordeaux"
```

```r
df[3,] # ligne 3 , toutes les colonnes
```

```
##     nom ville conjoint1 conjoint2 nb_personnes
## 3 Niang Paris      1750      1690            3
```

```r
df[,1] # toutes les lignes, 1ère colonne
```

```
## [1] "Lambert"  "Doussain" "Niang"    "Gérard"   "Laporte"  "Herrand"
```

```r
df$nom #identique au précédent
```

```
## [1] "Lambert"  "Doussain" "Niang"    "Gérard"   "Laporte"  "Herrand"
```

### Le pipe **%>%** (raccourci: Ctrl + Alt + M)
Enchaine les opérations de la gauche vers la droite

```r
df$conjoint1 %>% mean
```

```
## [1] 1446.667
```
### Les modalités d'une variable: la fonction *unique*

```r
df$ville %>% unique
```

```
## [1] "Bordeaux"  "Marseille" "Paris"
```

---
class: left
# Traiter les données avec *dplyr*

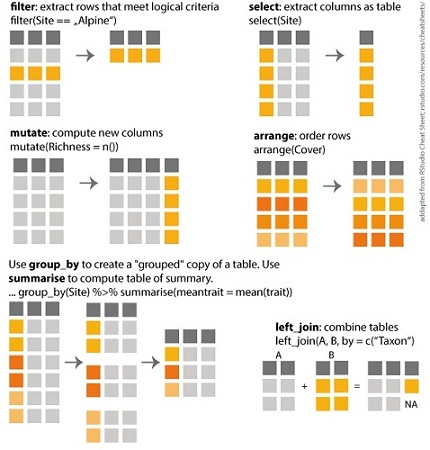

![Les verbes dplyr](images/dplyr.jpg)

Les verbes de dplyr: **summarize**, **slice**, **rename**, **select**, **arrange**, **mutate**, **group_by**

---
class: left
# *dplyr* : statistiques avec **summarise**

```r
df %>% summarise(
  'Nombre de ménages' = n(),
  'Revenu moyen du 1er conjoint' = mean(conjoint1)
  )
```

```
##   Nombre de ménages Revenu moyen du 1er conjoint
## 1                 6                     1446.667
```

---
class: left
# *dplyr* : découper les données avec **slice** et **sample_n**

```r
df %>% slice(1:3) # découpe les enregistrements de 1 à 3
```

```
##        nom     ville conjoint1 conjoint2 nb_personnes
## 1  Lambert  Bordeaux      1200      1450            4
## 2 Doussain Marseille      1180      1870            2
## 3    Niang     Paris      1750      1690            3
```

```r
df %>% sample_n(2) # découpe 2 enregistrements au hasard
```

```
##       nom    ville conjoint1 conjoint2 nb_personnes
## 1 Herrand    Paris      1100        NA            1
## 2 Lambert Bordeaux      1200      1450            4
```

```r
df %>% sample_frac(0.25) # découpe 25% des données
```

```
##        nom     ville conjoint1 conjoint2 nb_personnes
## 1    Niang     Paris      1750      1690            3
## 2 Doussain Marseille      1180      1870            2
```

---
class: left
# *dplyr* : renommer des variables **rename**

- **rename** renomme des variables

```r
df %>% rename(origine = ville) # renomme la variable ville en origine
```

```
##        nom   origine conjoint1 conjoint2 nb_personnes
## 1  Lambert  Bordeaux      1200      1450            4
## 2 Doussain Marseille      1180      1870            2
## 3    Niang     Paris      1750      1690            3
## 4   Gérard  Bordeaux      2100        NA            2
## 5  Laporte     Paris      1350      2350            5
## 6  Herrand     Paris      1100        NA            1
```

---
class: left
# *dplyr* : selectionner des variables **select**

- **select** selectionne et/ou réorganise et/ou renomme les variables

```r
df %>% select(c(3,5)) # les 3ème et 5ème variables
```

```
##   conjoint1 nb_personnes
## 1      1200            4
## 2      1180            2
## 3      1750            3
## 4      2100            2
## 5      1350            5
## 6      1100            1
```

```r
df %>% select(origine = ville) # la variable ville sera renommée
```

```
##     origine
## 1  Bordeaux
## 2 Marseille
## 3     Paris
## 4  Bordeaux
## 5     Paris
## 6     Paris
```

---
class: left
# *dplyr* : selectionner des variables **select** (2)

- **select** selectionne et/ou réorganise et/ou renomme les variables

```r
df %>% select(starts_with("conjoint")) # commencent par "conjoint"
```

```
##   conjoint1 conjoint2
## 1      1200      1450
## 2      1180      1870
## 3      1750      1690
## 4      2100        NA
## 5      1350      2350
## 6      1100        NA
```

```r
df %>% select(origine = ville, nom, nb_personnes, everything())
```

```
##     origine      nom nb_personnes conjoint1 conjoint2
## 1  Bordeaux  Lambert            4      1200      1450
## 2 Marseille Doussain            2      1180      1870
## 3     Paris    Niang            3      1750      1690
## 4  Bordeaux   Gérard            2      2100        NA
## 5     Paris  Laporte            5      1350      2350
## 6     Paris  Herrand            1      1100        NA
```

---
class: left
# *dplyr* : trier les données avec **arrange**

```r
df %>% arrange(conjoint1) # tri selon conjoint1
```

```
##        nom     ville conjoint1 conjoint2 nb_personnes
## 1  Herrand     Paris      1100        NA            1
## 2 Doussain Marseille      1180      1870            2
## 3  Lambert  Bordeaux      1200      1450            4
## 4  Laporte     Paris      1350      2350            5
## 5    Niang     Paris      1750      1690            3
## 6   Gérard  Bordeaux      2100        NA            2
```

```r
df %>% arrange(desc(nb_personnes)) # tri décroissant
```

```
##        nom     ville conjoint1 conjoint2 nb_personnes
## 1  Laporte     Paris      1350      2350            5
## 2  Lambert  Bordeaux      1200      1450            4
## 3    Niang     Paris      1750      1690            3
## 4 Doussain Marseille      1180      1870            2
## 5   Gérard  Bordeaux      2100        NA            2
## 6  Herrand     Paris      1100        NA            1
```

---
class: left
# *dplyr* : créer des colonnes avec **mutate**

```r
df %>% mutate(revenu = conjoint1 + conjoint2) # opération
```

```
##        nom     ville conjoint1 conjoint2 nb_personnes revenu
## 1  Lambert  Bordeaux      1200      1450            4   2650
## 2 Doussain Marseille      1180      1870            2   3050
## 3    Niang     Paris      1750      1690            3   3440
## 4   Gérard  Bordeaux      2100        NA            2     NA
## 5  Laporte     Paris      1350      2350            5   3700
## 6  Herrand     Paris      1100        NA            1     NA
```

```r
df %>% mutate(
  conjoint2 = if_else(is.na(conjoint2), 0, conjoint2),
  revenu_par_personne = (conjoint1 + conjoint2) / nb_personnes
  )
```

```
##        nom     ville conjoint1 conjoint2 nb_personnes revenu_par_personne
## 1  Lambert  Bordeaux      1200      1450            4             662.500
## 2 Doussain Marseille      1180      1870            2            1525.000
## 3    Niang     Paris      1750      1690            3            1146.667
## 4   Gérard  Bordeaux      2100         0            2            1050.000
## 5  Laporte     Paris      1350      2350            5             740.000
## 6  Herrand     Paris      1100         0            1            1100.000
```

---
class: left
# *dplyr* : calculs en ligne avec *rowwise()*

```r
df %>% mutate(
  revenu_par_personne = sum(conjoint1, conjoint2, na.rm = T) / nb_personnes
  ) # calcule la somme de la colonne
```

```
##        nom     ville conjoint1 conjoint2 nb_personnes revenu_par_personne
## 1  Lambert  Bordeaux      1200      1450            4            4010.000
## 2 Doussain Marseille      1180      1870            2            8020.000
## 3    Niang     Paris      1750      1690            3            5346.667
## 4   Gérard  Bordeaux      2100        NA            2            8020.000
## 5  Laporte     Paris      1350      2350            5            3208.000
## 6  Herrand     Paris      1100        NA            1           16040.000
```

```r
df %>% rowwise() %>% mutate(
  revenu_par_personne = sum(conjoint1, conjoint2, na.rm = T) / nb_personnes
  ) # la somme ne se fait que pour la ligne courante
```

```
## Source: local data frame [6 x 6]
## Groups: <by row>
##
## # A tibble: 6 x 6
##   nom      ville     conjoint1 conjoint2 nb_personnes revenu_par_personne
##   <chr>    <chr>         <dbl>     <dbl>        <dbl>               <dbl>
## 1 Lambert  Bordeaux       1200      1450            4                662.
## 2 Doussain Marseille      1180      1870            2               1525
## 3 Niang    Paris          1750      1690            3               1147.
## 4 Gérard   Bordeaux       2100        NA            2               1050
## 5 Laporte  Paris          1350      2350            5                740
## 6 Herrand  Paris          1100        NA            1               1100
```

---
class: left
# *dplyr* : statistiques par modalités avec *group_by*

```r
df %>% rowwise() %>%
  mutate(total = sum(conjoint1, conjoint2, na.rm = T)) %>%
  ungroup %>% # pour "oublier" le comptage par ligne
  group_by(ville) %>%
  summarise(`Nombre de ménages` = n(),
            `Revenu moyen` = mean(total),
            `Nombre de personnes` = sum(nb_personnes),
            `Taille moyenne` = `Nombre de personnes`/`Nombre de ménages`
            )
```

```
## # A tibble: 3 x 5
##   ville     `Nombre de ménages` `Revenu moyen` `Nombre de personnes` `Taille moyenne`
##   <chr>                   <int>          <dbl>                 <dbl>            <dbl>
## 1 Bordeaux                    2          2375                      6                3
## 2 Marseille                   1          3050                      2                2
## 3 Paris                       3          2747.                     9                3
```

---
class: left

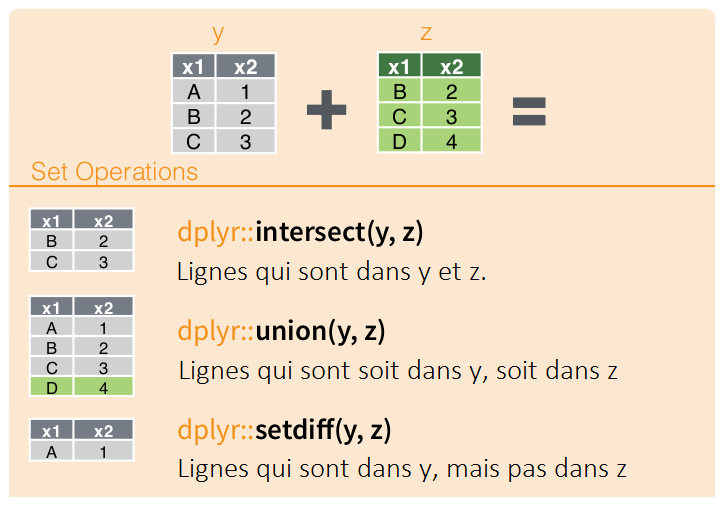

# *dplyr* : Selection de lignes

```r
a <- df %>% select(nom,ville)
b <- data.frame(
  nom = c("Gérard", "N'Guyen", "Lambert",
          "Dupont", "Niang"),
  ville = c("Bordeaux", "Marseille", "Paris",
            "Bordeaux", "Paris"),
  stringsAsFactors = F
)
```

```r
union(a,b)
```

```
##        nom     ville
## 1  Lambert  Bordeaux
## 2 Doussain Marseille
## 3    Niang     Paris
## 4   Gérard  Bordeaux
## 5  Laporte     Paris
## 6  Herrand     Paris
## 7  N'Guyen Marseille
## 8  Lambert     Paris
## 9   Dupont  Bordeaux
```
]

### intersect()

```r
intersect(a,b)
```

```
##      nom    ville
## 1  Niang    Paris
## 2 Gérard Bordeaux
```

### setdiff()

```r
setdiff(a,b)
```

```
##        nom     ville
## 1  Lambert  Bordeaux
## 2 Doussain Marseille
## 3  Laporte     Paris
## 4  Herrand     Paris
```

---
class: left

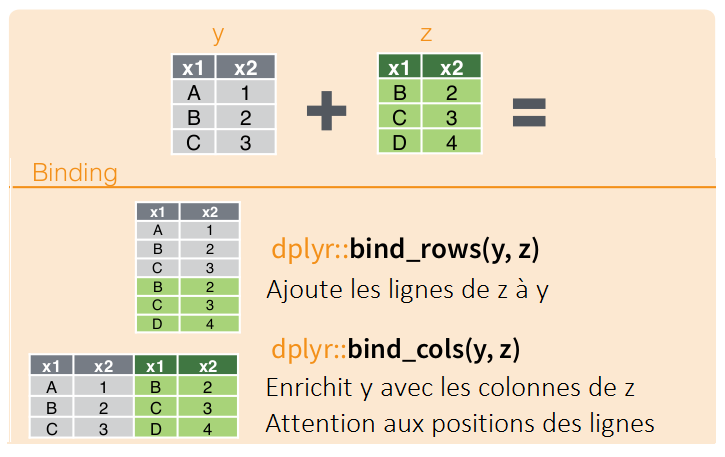

# *dplyr* : Concaténation

```r
c <- data.frame(
  age = c(25, 45, 51, 18, 33, 40)
  )
```

</br></br>

```r
bind_cols(a,c)
```

```
##        nom     ville age
## 1  Lambert  Bordeaux  25
## 2 Doussain Marseille  45
## 3    Niang     Paris  51
## 4   Gérard  Bordeaux  18
## 5  Laporte     Paris  33
## 6  Herrand     Paris  40
```
]

### bind_rows()

```r
bind_rows(a,b)
```

```
##         nom     ville
## 1   Lambert  Bordeaux
## 2  Doussain Marseille
## 3     Niang     Paris
## 4    Gérard  Bordeaux
## 5   Laporte     Paris
## 6   Herrand     Paris
## 7    Gérard  Bordeaux
## 8   N'Guyen Marseille
## 9   Lambert     Paris
## 10   Dupont  Bordeaux
## 11    Niang     Paris
```

---
class: left

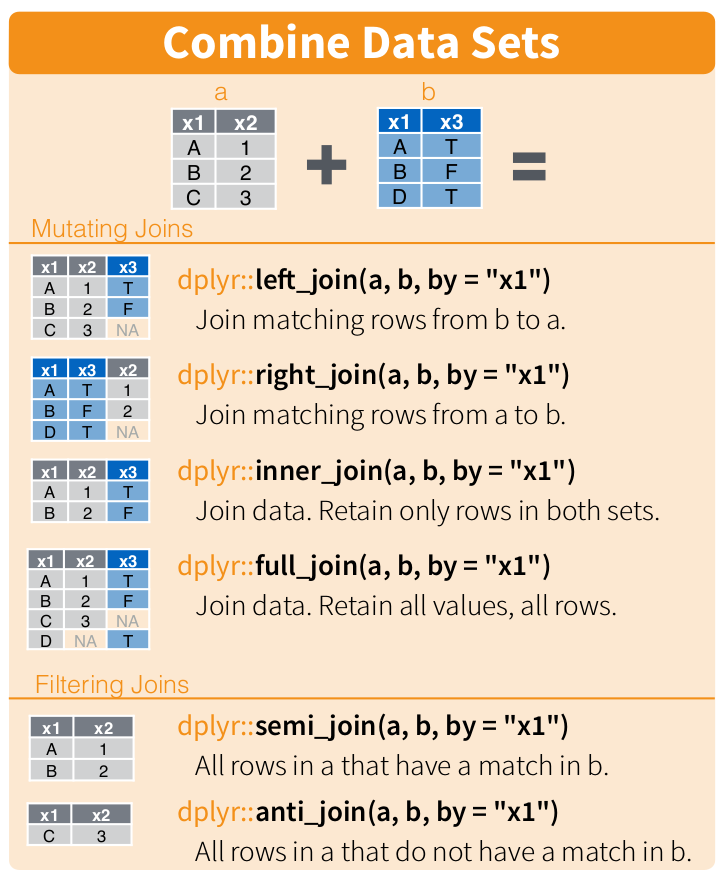

# *dplyr* : Jointures
.right-column[![jointures](images/join.png)]

### left_join()
Enrichit la table de gauche avec de nouvelles colonnes
### right_join()
Enrichit la table de droite avec de nouvelles colonnes
### inner_join()
Joint toutes les colonnes des lignes communes aux deux tables
### full_join()
Joint toutes les colonnes
### semi_join()
Les lignes de la table de gauche présentes dans celle de droite
### anti_join()
Les lignes de la table de gauche qui ne sont pas présentes dans celle de droite

---
class: inverse, center, middle
# Ranger un jeu de données

### [taɪdi]

![tidyR hex](images/tidyrHex.jpg)

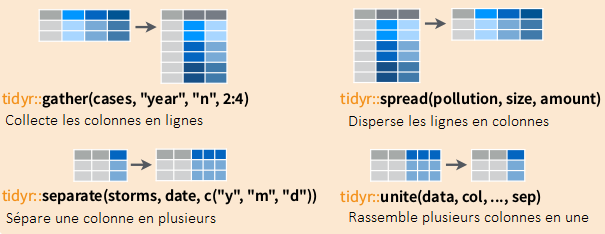

![Données rangées](images/tidyr_functions.png)

---
class: left
# Rendre les données exploitables
.left-column[![data-cleaning](images/data-cleaning.png)]
Les extensions du **tidyverse** comme *dplyr* ou *ggplot2* utilisent des données “rangées”, appelées *tidy data*.
Prenons un exemple avec les données suivantes, qui indique la population de trois pays pour quatre années différentes :
### Les données non brutes
<table class="table" style="font-size: 12px; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:left;"> country </th>
   <th style="text-align:right;"> 1992 </th>
   <th style="text-align:right;"> 1997 </th>
   <th style="text-align:right;"> 2002 </th>
   <th style="text-align:right;"> 2007 </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> Belgium </td>
   <td style="text-align:right;"> 10045622 </td>
   <td style="text-align:right;"> 10199787 </td>
   <td style="text-align:right;"> 10311970 </td>
   <td style="text-align:right;"> 10392226 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> France </td>
   <td style="text-align:right;"> 57374179 </td>
   <td style="text-align:right;"> 58623428 </td>
   <td style="text-align:right;"> 59925035 </td>
   <td style="text-align:right;"> 61083916 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Germany </td>
   <td style="text-align:right;"> 80597764 </td>
   <td style="text-align:right;"> 82011073 </td>
   <td style="text-align:right;"> 82350671 </td>
   <td style="text-align:right;"> 82400996 </td>
  </tr>
</tbody>
</table>
Les années sont en colonne, ce qui signifie que chaque année est un "indicateur" (une variable). Or, pour représenter une variable, il faut qu'elle soit relative à des "modalités", chaque pays représentant une "série" (une courbe différente).

---
class: left
# Utilisation des deux types de tableaux
.right-column[![tidy](images/tame_tidy.png)]
Les deux exemples de données brutes ci-contre démontrent l'utilité d'avoir un jeu "rangé".
Ce qui ne convient pas:
- les colonnes du premier jeu comprennent deux informations: l'épice utilisé et l'ordre d'utilisation
- les deux tableaux correspondent aux mêmes données et sont transposables
- il sera plus difficile de faire des comptages, des modélisations ou des représentations graphiques avec un tableau de contingence qu'avec un tableau de données ordonnées et rangées.

---
class: left

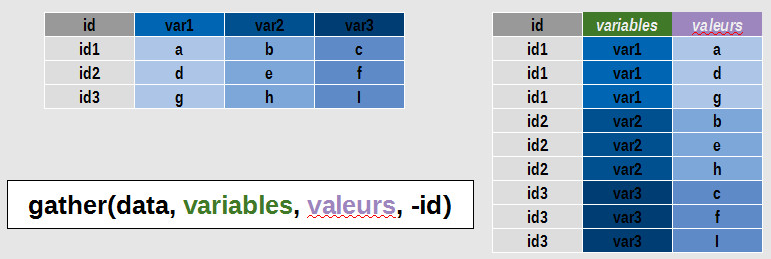

# Rassembler les colonnes: *gather*

### Syntaxe
.right-column[![gather](images/gather.jpg)]Le verbe **gather** va transformer les colonnes qui contiennent ces valeurs en lignes selon le schéma vu à la diapo précédente.

La syntaxe est la suivante:

</br>

```r
gather(data, key = variable, value = valeur, -id)
```

ou avec le pipe %>%:

```r
data %>% gather(key = variable, value = valeur, -id)
```

- *data* est le jeu de données à ordonner
- *variables* sera le nom de la colonne qui rassemblera les variables
- *valeurs* sera le nom de la colonne qui rassemblera les valeurs

> Attention: Le verbe *gather* est remplacé par *pivot_longer*. La syntaxe est `pivot_longer(data, liste_de_colonnes, names_to , values_to)`
---
class: left
# Exemple d'utilisation de *gather*

Le tableau suivant contient les valeurs des populations et des espérances de vie pour 2002 et 2007. En voici les 10 premières lignes:

<table class="table" style="font-size: 12px; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:left;"> country </th>
   <th style="text-align:left;"> continent </th>
   <th style="text-align:right;"> pop_2002 </th>
   <th style="text-align:right;"> pop_2007 </th>
   <th style="text-align:right;"> lifeExp_2002 </th>
   <th style="text-align:right;"> lifeExp_2007 </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> Afghanistan </td>
   <td style="text-align:left;"> Asia </td>
   <td style="text-align:right;"> 25268405 </td>
   <td style="text-align:right;"> 31889923 </td>
   <td style="text-align:right;"> 42.129 </td>
   <td style="text-align:right;"> 43.828 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Albania </td>
   <td style="text-align:left;"> Europe </td>
   <td style="text-align:right;"> 3508512 </td>
   <td style="text-align:right;"> 3600523 </td>
   <td style="text-align:right;"> 75.651 </td>
   <td style="text-align:right;"> 76.423 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Algeria </td>
   <td style="text-align:left;"> Africa </td>
   <td style="text-align:right;"> 31287142 </td>
   <td style="text-align:right;"> 33333216 </td>
   <td style="text-align:right;"> 70.994 </td>
   <td style="text-align:right;"> 72.301 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Angola </td>
   <td style="text-align:left;"> Africa </td>
   <td style="text-align:right;"> 10866106 </td>
   <td style="text-align:right;"> 12420476 </td>
   <td style="text-align:right;"> 41.003 </td>
   <td style="text-align:right;"> 42.731 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Argentina </td>
   <td style="text-align:left;"> Americas </td>
   <td style="text-align:right;"> 38331121 </td>
   <td style="text-align:right;"> 40301927 </td>
   <td style="text-align:right;"> 74.340 </td>
   <td style="text-align:right;"> 75.320 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Australia </td>
   <td style="text-align:left;"> Oceania </td>
   <td style="text-align:right;"> 19546792 </td>
   <td style="text-align:right;"> 20434176 </td>
   <td style="text-align:right;"> 80.370 </td>
   <td style="text-align:right;"> 81.235 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Austria </td>
   <td style="text-align:left;"> Europe </td>
   <td style="text-align:right;"> 8148312 </td>
   <td style="text-align:right;"> 8199783 </td>
   <td style="text-align:right;"> 78.980 </td>
   <td style="text-align:right;"> 79.829 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Bahrain </td>
   <td style="text-align:left;"> Asia </td>
   <td style="text-align:right;"> 656397 </td>
   <td style="text-align:right;"> 708573 </td>
   <td style="text-align:right;"> 74.795 </td>
   <td style="text-align:right;"> 75.635 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Bangladesh </td>
   <td style="text-align:left;"> Asia </td>
   <td style="text-align:right;"> 135656790 </td>
   <td style="text-align:right;"> 150448339 </td>
   <td style="text-align:right;"> 62.013 </td>
   <td style="text-align:right;"> 64.062 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Belgium </td>
   <td style="text-align:left;"> Europe </td>
   <td style="text-align:right;"> 10311970 </td>
   <td style="text-align:right;"> 10392226 </td>
   <td style="text-align:right;"> 78.320 </td>
   <td style="text-align:right;"> 79.441 </td>
  </tr>
</tbody>
</table>

Nous allons rassembler les colonnes pop_2002, pop_2007, lifeExp_2002, lifeExp_2007:

```r
gather(gapmind_messy, key = variables, value = valeur, -c(country, continent))
```

```
## # A tibble: 6 x 4
##   country                  continent variables        valeur
##   <chr>                    <chr>     <chr>             <dbl>
## 1 Namibia                  Africa    lifeExp_2002       51.5
## 2 United States            Americas  lifeExp_2007       78.2
## 3 Ghana                    Africa    pop_2007     22873338
## 4 Reunion                  Africa    lifeExp_2007       76.4
## 5 Mozambique               Africa    lifeExp_2007       42.1
## 6 Central African Republic Africa    lifeExp_2002       43.3
```

---
class: left
# Conséquence d'un *gather* sur les dimensions du jeu de données
### Le jeu de données avant *gather*

```
## Classes 'tbl_df', 'tbl' and 'data.frame':	142 obs. of  6 variables:
##  $ country     : chr  "Afghanistan" "Albania" "Algeria" "Angola" ...
##  $ continent   : chr  "Asia" "Europe" "Africa" "Africa" ...
##  $ pop_2002    : int  25268405 3508512 31287142 10866106 38331121 19546792 8148312 656397 135656790 10311970 ...
##  $ pop_2007    : int  31889923 3600523 33333216 12420476 40301927 20434176 8199783 708573 150448339 10392226 ...
##  $ lifeExp_2002: num  42.1 75.7 71 41 74.3 ...
##  $ lifeExp_2007: num  43.8 76.4 72.3 42.7 75.3 ...
```
### Le jeu de données après *gather*

```
## Classes 'tbl_df', 'tbl' and 'data.frame':	568 obs. of  4 variables:
##  $ country  : chr  "Afghanistan" "Albania" "Algeria" "Angola" ...
##  $ continent: chr  "Asia" "Europe" "Africa" "Africa" ...
##  $ variables: chr  "pop_2002" "pop_2002" "pop_2002" "pop_2002" ...
##  $ valeur   : num  25268405 3508512 31287142 10866106 38331121 ...
```

On remarque que le nombre de lignes est passé de 142 à 568. En effet, 4 colonnes ont été rassemblées, soit une multiplication par quatre du nombre de lignes.

---
class: left

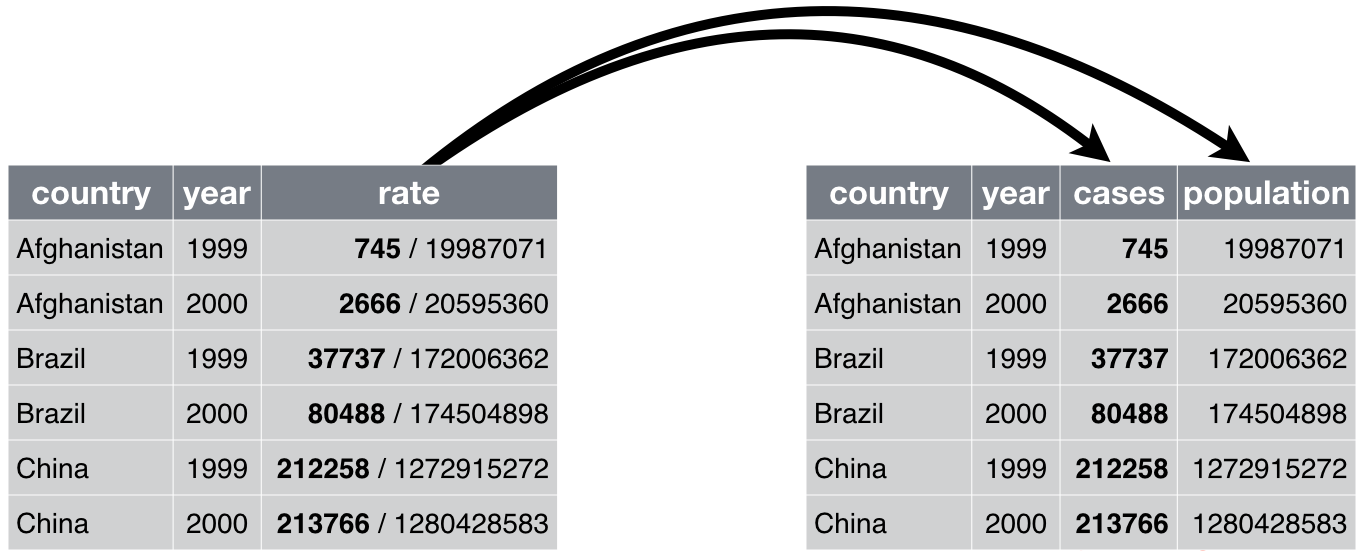

# Séparer une colonne: *separate*
### Syntaxe
.right-column[![separate](images/separate.png)]Le verbe **separate** va retrouver les informations multiples contenues dans une colonne et les répartir dans des colonnes différentes.

La syntaxe est la suivante:

</br></br>

```r
separate(data, col = colonne, into = c("col1", "col2"), se = "chaine")
```

- *data* est le jeu de données
- *colonne* est le nom de la colonne qui contient les informations
- *into* est le nom des colonnes qui contiendront les informations separées
- *separate* est la chaine de caractère qui sépare les informations dans *colonne*

---
class: left
# Exemple d'utilisation de *separate*

### Exemple
Dans le tableau précédent, la colonne *variables* contient deux informations: la variable et l'année. On va séparer cette colonne en deux, une colonne *variable* et une colonne *annee*.

```r
separate(gapmind, col = variables, into = c("variable", "annee"), sep = "_")
```
<table class="table table-striped table-hover table-condensed" style="font-size: 10px; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:left;"> country </th>
   <th style="text-align:left;"> continent </th>
   <th style="text-align:left;"> variable </th>
   <th style="text-align:left;"> annee </th>
   <th style="text-align:right;"> valeur </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> Hungary </td>
   <td style="text-align:left;"> Europe </td>
   <td style="text-align:left;"> pop </td>
   <td style="text-align:left;"> 2007 </td>
   <td style="text-align:right;"> 9956108.000 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Liberia </td>
   <td style="text-align:left;"> Africa </td>
   <td style="text-align:left;"> lifeExp </td>
   <td style="text-align:left;"> 2002 </td>
   <td style="text-align:right;"> 43.753 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Cambodia </td>
   <td style="text-align:left;"> Asia </td>
   <td style="text-align:left;"> pop </td>
   <td style="text-align:left;"> 2002 </td>
   <td style="text-align:right;"> 12926707.000 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Portugal </td>
   <td style="text-align:left;"> Europe </td>
   <td style="text-align:left;"> lifeExp </td>
   <td style="text-align:left;"> 2007 </td>
   <td style="text-align:right;"> 78.098 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Afghanistan </td>
   <td style="text-align:left;"> Asia </td>
   <td style="text-align:left;"> lifeExp </td>
   <td style="text-align:left;"> 2002 </td>
   <td style="text-align:right;"> 42.129 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Botswana </td>
   <td style="text-align:left;"> Africa </td>
   <td style="text-align:left;"> lifeExp </td>
   <td style="text-align:left;"> 2002 </td>
   <td style="text-align:right;"> 46.634 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Romania </td>
   <td style="text-align:left;"> Europe </td>
   <td style="text-align:left;"> lifeExp </td>
   <td style="text-align:left;"> 2007 </td>
   <td style="text-align:right;"> 72.476 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Tanzania </td>
   <td style="text-align:left;"> Africa </td>
   <td style="text-align:left;"> lifeExp </td>
   <td style="text-align:left;"> 2007 </td>
   <td style="text-align:right;"> 52.517 </td>
  </tr>
</tbody>
</table>

---
class: left
# Le verbe **extract**
**extract** permet de créer de nouvelles colonnes à partir de sous-chaînes d’une colonne de texte existante, identifiées par des groupes dans une expression régulière.

```r
df <- data.frame(
  eleve = c("Félicien Machin", "Raymonde Bidule", "Martial Truc"),
  note = c("5/20", "6/10", "87/100"),
  stringsAsFactors = FALSE)

df %>% extract(eleve,
               c("initiale_prenom", "initiale_nom"),
               "^(.).* (.).*$",
               remove = FALSE)
```

```
##             eleve initiale_prenom initiale_nom   note
## 1 Félicien Machin               F            M   5/20
## 2 Raymonde Bidule               R            B   6/10
## 3    Martial Truc               M            T 87/100
```

---
class: left
# Regrouper plusieurs colonnes: *unite*
### Syntaxe

```r
unite(data, col_a_creer, col_a_regrouper, separateur)
```

### Exemple
Soit le tableau suivant:

```
##   dep codcom                  libcom
## 1  01    001 L'Abergement-Clémenciat
## 2  01    002   L'Abergement-de-Varey
## 3  01    004       Ambérieu-en-Bugey
## 4  01    005     Ambérieux-en-Dombes
## 5  01    006                 Ambléon
## 6  01    007                Ambronay
```
Regroupons les colonnes *dep* et *codcom* en une seule colonne, *codgeo*:

```r
listecom %>% unite(codgeo, dep, codcom, sep="") %>% head(6)
```

```
##   codgeo                  libcom
## 1  01001 L'Abergement-Clémenciat
## 2  01002   L'Abergement-de-Varey
## 3  01004       Ambérieu-en-Bugey
## 4  01005     Ambérieux-en-Dombes
## 5  01006                 Ambléon
## 6  01007                Ambronay
```

---
class: left
# Completer un jeu de données: *complete*
### Syntaxe

```r
complete(data, col_a_combiner, fill = liste_valeurs)
```

### Exemple
Quatre personnes ont visité des villes d'Italie et leur ont attribué une note.

<table class="table table-striped table-hover table-condensed" style="font-size: 8px; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:left;"> Nom </th>
   <th style="text-align:left;"> Ville </th>
   <th style="text-align:left;"> Pays </th>
   <th style="text-align:right;"> Note </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> Pierre </td>
   <td style="text-align:left;"> Venise </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 4 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Vanessa </td>
   <td style="text-align:left;"> Venise </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 3 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Louis </td>
   <td style="text-align:left;"> Venise </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 1 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Anaïs </td>
   <td style="text-align:left;"> Venise </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 5 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Pierre </td>
   <td style="text-align:left;"> Rome </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 4 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Louis </td>
   <td style="text-align:left;"> Rome </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 1 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Anaïs </td>
   <td style="text-align:left;"> Rome </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 2 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Pierre </td>
   <td style="text-align:left;"> Naples </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 3 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Vanessa </td>
   <td style="text-align:left;"> Naples </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 2 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Louis </td>
   <td style="text-align:left;"> Naples </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 5 </td>
  </tr>
</tbody>
</table>

Il manque deux combinaisons Nom, Ville. Le verbe **complete** va créer les enregistrements avec les valeurs *Italie* et *NA* pour les champs Pays et Note.

```r
complete(data, Nom, Ville, fill = list(Pays = "Italie", Note = NA))
```

<table class="table table-striped table-hover table-condensed" style="font-size: 8px; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:left;"> Nom </th>
   <th style="text-align:left;"> Ville </th>
   <th style="text-align:left;"> Pays </th>
   <th style="text-align:right;"> Note </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> Anaïs </td>
   <td style="text-align:left;"> Naples </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> NA </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Anaïs </td>
   <td style="text-align:left;"> Rome </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 2 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Anaïs </td>
   <td style="text-align:left;"> Venise </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 5 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Louis </td>
   <td style="text-align:left;"> Naples </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 5 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Louis </td>
   <td style="text-align:left;"> Rome </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 1 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Louis </td>
   <td style="text-align:left;"> Venise </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 1 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Pierre </td>
   <td style="text-align:left;"> Naples </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 3 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Pierre </td>
   <td style="text-align:left;"> Rome </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 4 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Pierre </td>
   <td style="text-align:left;"> Venise </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 4 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Vanessa </td>
   <td style="text-align:left;"> Naples </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 2 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Vanessa </td>
   <td style="text-align:left;"> Rome </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> NA </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Vanessa </td>
   <td style="text-align:left;"> Venise </td>
   <td style="text-align:left;"> Italie </td>
   <td style="text-align:right;"> 3 </td>
  </tr>
</tbody>
</table>

---
class: left

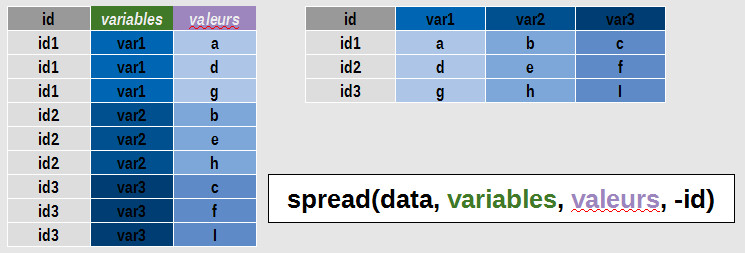

# Réaliser un tableau: *spread*
.right-column[![spread](images/spread.jpg)]
Le verbe **spread** fait le contraire de **gather** à savoir répartir les modalités d'une variable et leurs valeurs comme nouvelles colonnes du tableau.
### Syntaxe

```r
spread(data, key = variables , value = valeurs, fill = liste_valeurs)
```

### Exemple
Reprenons notre exemple avant l'application du verbe **unite**.

```r
data %>% spread(key = Ville, value = Note, fill = "nc")
```

```
##       Nom   Pays Naples Rome Venise
## 1   Anaïs Italie     nc    2      5
## 2   Louis Italie      5    1      1
## 3  Pierre Italie      3    4      4
## 4 Vanessa Italie      2   nc      3
```

---
class: left
# Exemple récapitulatif 1/
.right-column[![tab_chom](images/tab_chom.jpg)]On télecharge le fichier de la série des taux de chômage par département sur Insee.fr<sup>1</sup>.

On souhaite réaliser le tableau ci-contre, présent sur le tableau de bord de la conjoncture de Nouvelle-Aquitaine<sup>2</sup>.
.footnote[
[1] https://www.insee.fr/fr/statistiques/series/102760732

[2] https://www.insee.fr/fr/statistiques/2121832#alpc_0104
]

Les données, sont dans un tableau dont les deux premières colonnes sont le code et le libellé du département et les suivantes correspondent chacune à un trimestre.

```r
tx_chom <- readxl::read_xls("data/tx_chom.xls")
tx_chom[1:4,1:10]
```

```
## # A tibble: 4 x 10
##   Code  Libellé                 T1_1982 T2_1982 T3_1982 T4_1982 T1_1983 T2_1983 T3_1983 T4_1983
##   <chr> <chr>                     <dbl>   <dbl>   <dbl>   <dbl>   <dbl>   <dbl>   <dbl>   <dbl>
## 1 01    AIN                         3.6     3.7     3.8     4       4       4       4.2     4.4
## 2 02    AISNE                       8.1     8.3     8.4     8.3     8.4     8.4     8.7     9.1
## 3 03    ALLIER                      7       7.2     7.3     7.4     7.4     7.4     7.5     8
## 4 04    ALPES-DE-HAUTE-PROVENCE     5.2     5.4     5.5     5.8     5.9     5.9     6       6.4
```

---
class:left
# Exemple récapitulatif 2/

On récupère le trimestre le plus récent, et on construit la liste des trimestres qui devront apparaitre dans notre tableau final.

```r
trim <- as.numeric(str_sub(last(names(tx_chom)),2,2))
ann <- as.numeric(str_sub(last(names(tx_chom)),4,7))

trimestres <- c(
  paste0("T", trim, "_", ann - 1),
  paste0("T", 1 + ( trim + 2) %% 4, "_", ann),
  paste0("T", trim, "_", ann)
)

trimestres
```

```
## [1] "T3_2018" "T2_2019" "T3_2019"
```

On charge un table de zonages pour enrichir le tableau avec la région.

```r
load("data/zonages.Rda")
tx_chom <- tx_chom %>%
  inner_join(dc_zonages %>% distinct(dep, reg) , by = c("Code" = "dep")) %>%
  inner_join(lreg, by = c("reg")) %>%
  select(dep = Code, ldep = Libellé, Région = lreg, everything(), -reg)
```

```
## # A tibble: 3 x 6
##   dep   ldep   Région               T1_1982 T2_1982 T3_1982
##   <chr> <chr>  <chr>                  <dbl>   <dbl>   <dbl>
## 1 01    AIN    Auvergne-Rhône-Alpes     3.6     3.7     3.8
## 2 02    AISNE  Hauts-de-France          8.1     8.3     8.4
## 3 03    ALLIER Auvergne-Rhône-Alpes     7       7.2     7.3
```

---
class: inverse, center, middle

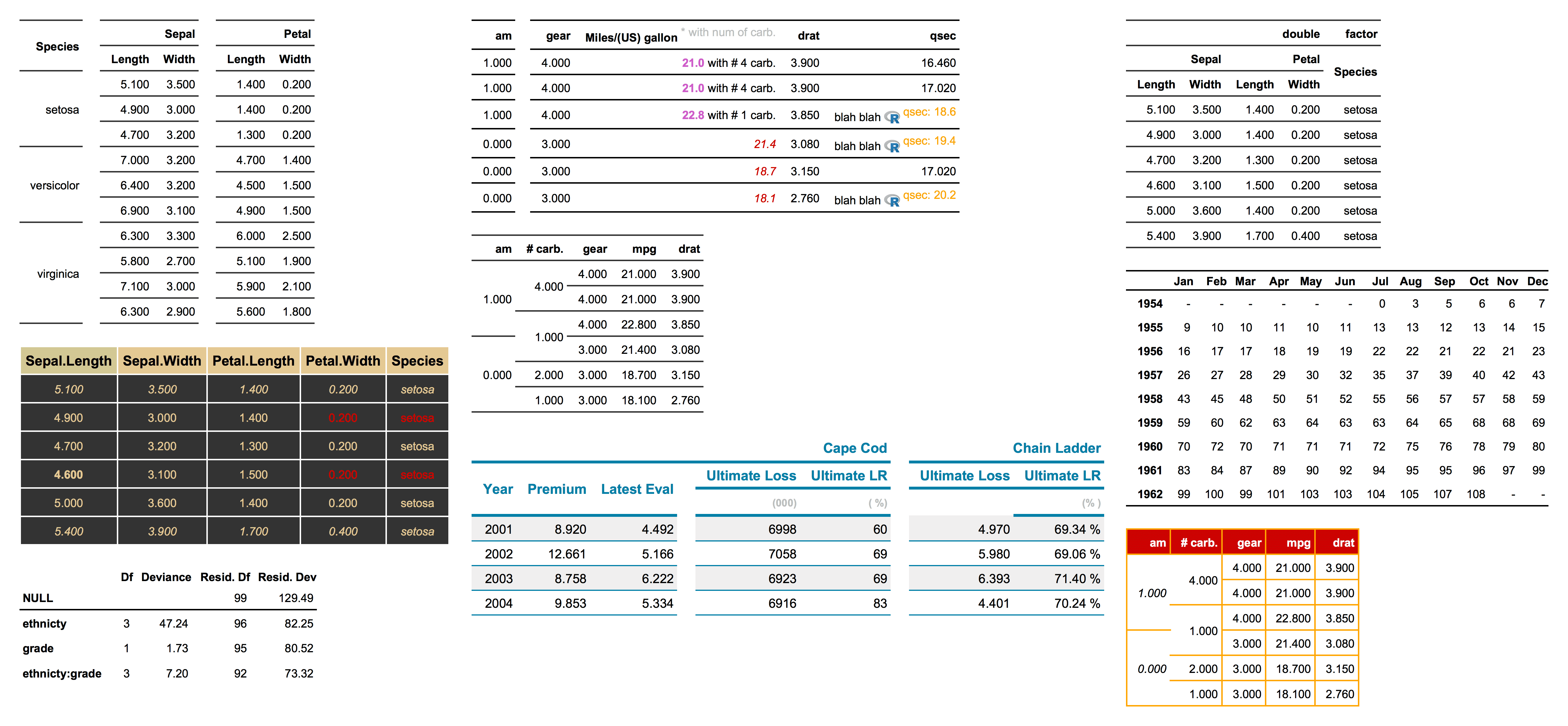

# Les tableaux
###Réalisation et mise en forme

![Le package flextable](images/flextable_collage.png)

---
class: inverse, center, middle

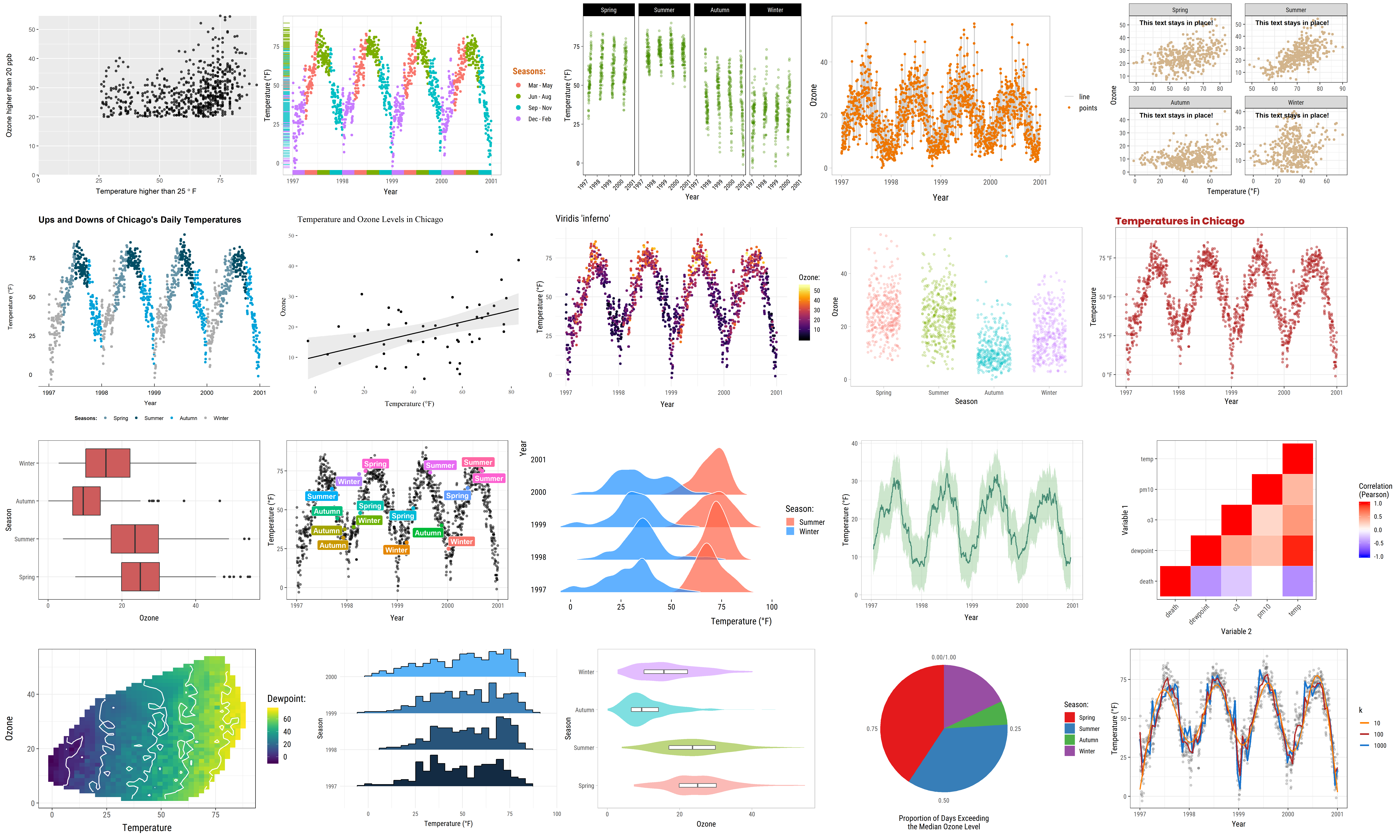

# Les graphiques
###Création, mise en forme et export
![Le package ggplot](images/ggplot_collage.png)

---
# Prout

Install the **xaringan** package from [Github](https://github.com/yihui/xaringan):

```r
devtools::install_github("yihui/xaringan")
```

You are recommended to use the [RStudio IDE](https://www.rstudio.com/products/rstudio/), but you do not have to.

- Create a new R Markdown document from the menu `File -> New File -> R Markdown -> From Template -> Ninja Presentation`;<sup>1</sup>

- Click the `Knit` button to compile it;

- or use the [RStudio Addin](https://rstudio.github.io/rstudioaddins/)<sup>2</sup> "Infinite Moon Reader" to live preview the slides (every time you update and save the Rmd document, the slides will be automatically reloaded in RStudio Viewer.

[2] See [#2](https://github.com/yihui/xaringan/issues/2) if you do not see the template or addin in RStudio.
]

---
background-image: url(https://github.com/yihui/xaringan/releases/download/v0.0.2/karl-moustache.jpg)
background-position: 50% 50%
class: center, bottom, inverse

# You only live once!

---

# Hello Ninja

As a presentation à la con ninja, you certainly should not be satisfied by the "Hello World" example. You need to understand more about two things:

1. The [remark.js](https://remarkjs.com) library;

1. The **xaringan** package;

Basically **xaringan** *injected* the chakra of R Markdown (minus Pandoc) into **remark.js**. The slides are rendered by remark.js in the web browser, and the Markdown source needed by remark.js is generated from R Markdown (**knitr**).

---

# remark.js

You can see an introduction of remark.js from [its homepage](https://remarkjs.com). You should read the [remark.js Wiki](https://github.com/gnab/remark/wiki) at least once to know how to

- create a new slide (Markdown syntax<sup>*</sup> and slide properties);

- format a slide (e.g. text alignment);

- configure the slideshow;

- and use the presentation (keyboard shortcuts).

It is important to be familiar with remark.js before you can understand the options in **xaringan**.

.footnote[[*] It is different with Pandoc's Markdown! It is limited but should be enough for presentation purposes. Come on... You do not need a slide for the Table of Contents! Well, the Markdown support in remark.js [may be improved](https://github.com/gnab/remark/issues/142) in the future.]

---
background-image: url(https://github.com/yihui/xaringan/releases/download/v0.0.2/karl-moustache.jpg)
background-size: cover
class: center, bottom, inverse

# I was so happy to have discovered remark.js!

---
class: inverse, middle, center

# Using xaringan

---

# xaringan

Provides an R Markdown output format `xaringan::moon_reader` as a wrapper for remark.js, and you can use it in the YAML metadata, e.g.

```yaml
---
title: "A Cool Presentation"
output:
  xaringan::moon_reader:
    yolo: true
    nature:
      autoplay: 30000
---
```

See the help page `?xaringan::moon_reader` for all possible options that you can use.

---

# remark.js vs xaringan

Some differences between using remark.js (left) and using **xaringan** (right):

1. Plain Markdown;

1. Write JavaScript to autoplay slides;

1. Manually configure MathJax;

1. Highlight code with `*`;

1. Edit Markdown source and refresh browser to see updated slides;
]

1. R Markdown (can embed R/other code chunks);

1. Provide an option `autoplay`;

1. MathJax just works;<sup>*</sup>

1. Highlight code with `{{john}}`;

1. The RStudio addin "Infinite Moon Reader" automatically refreshes slides on changes;
]

---

# Math Expressions

You can write LaTeX math expressions inside a pair of dollar signs, e.g. &#36;\alpha+\beta$ renders `$\alpha+\beta$`. You can use the display style with double dollar signs:

```
$$\bar{X}=\frac{1}{n}\sum_{i=1}^nX_i$$
```

`$$\bar{X}=\frac{1}{n}\sum_{i=1}^nX_i$$`

Limitations:

1. The source code of a LaTeX math expression must be in one line, unless it is inside a pair of double dollar signs, in which case the starting `$$` must appear in the very beginning of a line, followed immediately by a non-space character, and the ending `$$` must be at the end of a line, led by a non-space character;

1. There should not be spaces after the opening `$` or before the closing `$`.

1. Math does not work on the title slide (see [#61](https://github.com/yihui/xaringan/issues/61) for a workaround).

---

# R Code

```r
# a boring regression
fit = lm(dist ~ 1 + speed, data = cars)
coef(summary(fit))
```

```
#               Estimate Std. Error   t value     Pr(>|t|)
# (Intercept) -17.579095  6.7584402 -2.601058 1.231882e-02
# speed         3.932409  0.4155128  9.463990 1.489836e-12
```

```r
dojutsu = c('地爆天星', '天照', '加具土命', '神威', '須佐能乎', '無限月読')
grep('天', dojutsu, value = TRUE)
```

```
# character(0)
```

---

# R Plots

```r
par(mar = c(4, 4, 1, .1))
plot(cars, pch = 19, col = 'darkgray', las = 1)
abline(fit, lwd = 2)
```

![](r_avance_files/figure-html/cars-1.svg)

---

# Tables

If you want to generate a table, make sure it is in the HTML format (instead of Markdown or other formats), e.g.,

```r
knitr::kable(head(iris), format = 'html')
```

<table>
 <thead>
  <tr>
   <th style="text-align:right;"> Sepal.Length </th>
   <th style="text-align:right;"> Sepal.Width </th>
   <th style="text-align:right;"> Petal.Length </th>
   <th style="text-align:right;"> Petal.Width </th>
   <th style="text-align:left;"> Species </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:right;"> 5.1 </td>
   <td style="text-align:right;"> 3.5 </td>
   <td style="text-align:right;"> 1.4 </td>
   <td style="text-align:right;"> 0.2 </td>
   <td style="text-align:left;"> setosa </td>
  </tr>
  <tr>
   <td style="text-align:right;"> 4.9 </td>
   <td style="text-align:right;"> 3.0 </td>
   <td style="text-align:right;"> 1.4 </td>
   <td style="text-align:right;"> 0.2 </td>
   <td style="text-align:left;"> setosa </td>
  </tr>
  <tr>
   <td style="text-align:right;"> 4.7 </td>
   <td style="text-align:right;"> 3.2 </td>
   <td style="text-align:right;"> 1.3 </td>
   <td style="text-align:right;"> 0.2 </td>
   <td style="text-align:left;"> setosa </td>
  </tr>
  <tr>
   <td style="text-align:right;"> 4.6 </td>
   <td style="text-align:right;"> 3.1 </td>
   <td style="text-align:right;"> 1.5 </td>
   <td style="text-align:right;"> 0.2 </td>
   <td style="text-align:left;"> setosa </td>
  </tr>
  <tr>
   <td style="text-align:right;"> 5.0 </td>
   <td style="text-align:right;"> 3.6 </td>
   <td style="text-align:right;"> 1.4 </td>
   <td style="text-align:right;"> 0.2 </td>
   <td style="text-align:left;"> setosa </td>
  </tr>
  <tr>
   <td style="text-align:right;"> 5.4 </td>
   <td style="text-align:right;"> 3.9 </td>
   <td style="text-align:right;"> 1.7 </td>
   <td style="text-align:right;"> 0.4 </td>
   <td style="text-align:left;"> setosa </td>
  </tr>
</tbody>
</table>

---

# HTML Widgets

I have not thoroughly tested HTML widgets against **xaringan**. Some may work well, and some may not. It is a little tricky.

Similarly, the Shiny mode (`runtime: shiny`) does not work. I might get these issues fixed in the future, but these are not of high priority to me. I never turn my presentation into a Shiny app. When I need to demonstrate more complicated examples, I just launch them separately. It is convenient to share slides with other people when they are plain HTML/JS applications.

See the next page for two HTML widgets.

---

```r
library(leaflet)
leaflet() %>% addTiles() %>% setView(-93.65, 42.0285, zoom = 17)
```

<div id="htmlwidget-541844de264274b46b8d" style="width:100%;height:432px;" class="leaflet html-widget"></div>
<script type="application/json" data-for="htmlwidget-541844de264274b46b8d">{"x":{"options":{"crs":{"crsClass":"L.CRS.EPSG3857","code":null,"proj4def":null,"projectedBounds":null,"options":{}}},"calls":[{"method":"addTiles","args":["//{s}.tile.openstreetmap.org/{z}/{x}/{y}.png",null,null,{"minZoom":0,"maxZoom":18,"tileSize":256,"subdomains":"abc","errorTileUrl":"","tms":false,"noWrap":false,"zoomOffset":0,"zoomReverse":false,"opacity":1,"zIndex":1,"detectRetina":false,"attribution":"© <a href=\"http://openstreetmap.org\">OpenStreetMap<\/a> contributors, <a href=\"http://creativecommons.org/licenses/by-sa/2.0/\">CC-BY-SA<\/a>"}]}],"setView":[[42.0285,-93.65],17,[]]},"evals":[],"jsHooks":[]}</script>

---

```r
DT::datatable(
  head(iris, 10),
  fillContainer = FALSE, options = list(pageLength = 8)
)
```

<div id="htmlwidget-dc98a079949e57c51211" style="width:100%;height:auto;" class="datatables html-widget"></div>
<script type="application/json" data-for="htmlwidget-dc98a079949e57c51211">{"x":{"filter":"none","fillContainer":false,"data":[["1","2","3","4","5","6","7","8","9","10"],[5.1,4.9,4.7,4.6,5,5.4,4.6,5,4.4,4.9],[3.5,3,3.2,3.1,3.6,3.9,3.4,3.4,2.9,3.1],[1.4,1.4,1.3,1.5,1.4,1.7,1.4,1.5,1.4,1.5],[0.2,0.2,0.2,0.2,0.2,0.4,0.3,0.2,0.2,0.1],["setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa"]],"container":"<table class=\"display\">\n  <thead>\n    <tr>\n      <th> <\/th>\n      <th>Sepal.Length<\/th>\n      <th>Sepal.Width<\/th>\n      <th>Petal.Length<\/th>\n      <th>Petal.Width<\/th>\n      <th>Species<\/th>\n    <\/tr>\n  <\/thead>\n<\/table>","options":{"pageLength":8,"columnDefs":[{"className":"dt-right","targets":[1,2,3,4]},{"orderable":false,"targets":0}],"order":[],"autoWidth":false,"orderClasses":false,"lengthMenu":[8,10,25,50,100]}},"evals":[],"jsHooks":[]}</script>

---

# Some Tips

- When you use the "Infinite Moon Reader" addin in RStudio, your R session will be blocked by default. You can click the red button on the right of the console to stop serving the slides, or use the _daemonized_ mode so that it does not block your R session. To do the latter, you can set the option

```r
    options(servr.daemon = TRUE)
    ```

    in your current R session, or in `~/.Rprofile` so that it is applied to all future R sessions. I do the latter by myself.

    To know more about the web server, see the [**servr**](https://github.com/yihui/servr) package.

- Do not forget to try the `yolo` option of `xaringan::moon_reader`.

```yaml
    output:
      xaringan::moon_reader:
        yolo: true
    ```

---

# Some Tips

- Slides can be automatically played if you set the `autoplay` option under `nature`, e.g. go to the next slide every 30 seconds in a lightning talk:

```yaml
    output:
      xaringan::moon_reader:
        nature:
          autoplay: 30000
    ```

- A countdown timer can be added to every page of the slides using the `countdown` option under `nature`, e.g. if you want to spend one minute on every page when you give the talk, you can set:

```yaml
    output:
      xaringan::moon_reader:
        nature:
          countdown: 60000
    ```

Then you will see a timer counting down from `01:00`, to `00:59`, `00:58`, ... When the time is out, the timer will continue but the time turns red.

---

# Some Tips

- The title slide is created automatically by **xaringan**, but it is just another remark.js slide added before your other slides.

The title slide is set to `class: center, middle, inverse, title-slide` by default. You can change the classes applied to the title slide with the `titleSlideClass` option of `nature` (`title-slide` is always applied).

```yaml
    output:
      xaringan::moon_reader:
        nature:
          titleSlideClass: [top, left, inverse]
    ```

--

- If you'd like to create your own title slide, disable **xaringan**'s title slide with the `seal = FALSE` option of `moon_reader`.

```yaml
    output:
      xaringan::moon_reader:
        seal: false
    ```

---

# Some Tips

- There are several ways to build incremental slides. See [this presentation](https://slides.yihui.name/xaringan/incremental.html) for examples.

- The option `highlightLines: true` of `nature` will highlight code lines that start with `*`, or are wrapped in `{{ }}`, or have trailing comments `#<<`;

```yaml
    output:
      xaringan::moon_reader:
        nature:
          highlightLines: true
    ```

See examples on the next page.

---

# Some Tips

```r
    if (TRUE) {
    ** message("Very important!")
    }
    ```
Output:
```r
if (TRUE) {
* message("Very important!")
}
```

This is invalid R code, so it is a plain fenced code block that is not executed.
]

````
```{r tidy=FALSE}
if (TRUE) {
*{{ message("Very important!") }}
}
```
````
Output:

```r
if (TRUE) {
* message("Very important!")
}
```

```
## Very important!
```

It is valid R code so you can run it. Note that `{{}}` can wrap an R expression of multiple lines.
]

---

# Some Tips

An example of using the trailing comment `#<<` to highlight lines:

````markdown
```{r tidy=FALSE}
library(ggplot2)
ggplot(mtcars) +
  aes(mpg, disp) +
  geom_point() +   #<<
  geom_smooth()    #<<
```
````

Output:

```r
library(ggplot2)
ggplot(mtcars) +
  aes(mpg, disp) +
* geom_point() +
* geom_smooth()
```

---

# Some Tips

When you enable line-highlighting, you can also use the chunk option `highlight.output` to highlight specific lines of the text output from a code chunk. For example, `highlight.output = TRUE` means highlighting all lines, and `highlight.output = c(1, 3)` means highlighting the first and third line.

````md
```{r, highlight.output=c(1, 3)}
head(iris)
```
````

```
*##   Sepal.Length Sepal.Width Petal.Length Petal.Width Species
## 1          5.1         3.5          1.4         0.2  setosa
*## 2          4.9         3.0          1.4         0.2  setosa
## 3          4.7         3.2          1.3         0.2  setosa
## 4          4.6         3.1          1.5         0.2  setosa
## 5          5.0         3.6          1.4         0.2  setosa
## 6          5.4         3.9          1.7         0.4  setosa
```

Question: what does `highlight.output = c(TRUE, FALSE)` mean? (Hint: think about R's recycling of vectors)

---

# Some Tips

- To make slides work offline, you need to download a copy of remark.js in advance, because **xaringan** uses the online version by default (see the help page `?xaringan::moon_reader`).

- You can use `xaringan::summon_remark()` to download the latest or a specified version of remark.js. By default, it is downloaded to `libs/remark-latest.min.js`.

- Then change the `chakra` option in YAML to point to this file, e.g.

```yaml
    output:
      xaringan::moon_reader:
        chakra: libs/remark-latest.min.js
    ```

- If you used Google fonts in slides (the default theme uses _Yanone Kaffeesatz_, _Droid Serif_, and _Source Code Pro_), they won't work offline unless you download or install them locally. The Heroku app [google-webfonts-helper](https://google-webfonts-helper.herokuapp.com/fonts) can help you download fonts and generate the necessary CSS.

---

# Macros

- remark.js [allows users to define custom macros](https://github.com/yihui/xaringan/issues/80) (JS functions) that can be applied to Markdown text using the syntax `![:macroName arg1, arg2, ...]` or `![:macroName arg1, arg2, ...](this)`. For example, before remark.js initializes the slides, you can define a macro named `scale`:

```js
    remark.macros.scale = function (percentage) {
      var url = this;
      return '<img src="' + url + '" style="width: ' + percentage + '" />';
    };
    ```

Then the Markdown text

```markdown
    ![:scale 50%](image.jpg)
    ```

will be translated to

    ```html
    <img src="image.jpg" style="width: 50%" />
    ```

---

# Macros (continued)

- To insert macros in **xaringan** slides, you can use the option `beforeInit` under the option `nature`, e.g.,

```yaml
    output:
      xaringan::moon_reader:
        nature:
          beforeInit: "macros.js"
    ```

You save your remark.js macros in the file `macros.js`.

- The `beforeInit` option can be used to insert arbitrary JS code before `remark.create()`. Inserting macros is just one of its possible applications.

---

# CSS

Among all options in `xaringan::moon_reader`, the most challenging but perhaps also the most rewarding one is `css`, because it allows you to customize the appearance of your slides using any CSS rules or hacks you know.

You can see the default CSS file [here](https://github.com/yihui/xaringan/blob/master/inst/rmarkdown/templates/xaringan/resources/default.css). You can completely replace it with your own CSS files, or define new rules to override the default. See the help page `?xaringan::moon_reader` for more information.

---

# CSS

For example, suppose you want to change the font for code from the default "Source Code Pro" to "Ubuntu Mono". You can create a CSS file named, say, `ubuntu-mono.css`:

```css
@import url(https://fonts.googleapis.com/css?family=Ubuntu+Mono:400,700,400italic);

.remark-code, .remark-inline-code { font-family: 'Ubuntu Mono'; }
```

Then set the `css` option in the YAML metadata:

```yaml
output:
  xaringan::moon_reader:
    css: ["default", "ubuntu-mono.css"]
```

Here I assume `ubuntu-mono.css` is under the same directory as your Rmd.

See [yihui/xaringan#83](https://github.com/yihui/xaringan/issues/83) for an example of using the [Fira Code](https://github.com/tonsky/FiraCode) font, which supports ligatures in program code.

---

# Themes

Don't want to learn CSS? Okay, you can use some user-contributed themes. A theme typically consists of two CSS files `foo.css` and `foo-fonts.css`, where `foo` is the theme name. Below are some existing themes:

```r
names(xaringan:::list_css())
```

```
##  [1] "chocolate-fonts"  "chocolate"        "default-fonts"    "default"          "duke-blue"
##  [6] "fc-fonts"         "fc"               "hygge-duke"       "hygge"            "kunoichi"
## [11] "lucy-fonts"       "lucy"             "metropolis-fonts" "metropolis"       "middlebury-fonts"
## [16] "middlebury"       "ninjutsu"         "rladies-fonts"    "rladies"          "robot-fonts"
## [21] "robot"            "rutgers-fonts"    "rutgers"          "shinobi"          "tamu-fonts"
## [26] "tamu"             "uo-fonts"         "uo"               "uol-fonts"        "uol"
```

---

# Themes

To use a theme, you can specify the `css` option as an array of CSS filenames (without the `.css` extensions), e.g.,

```yaml
output:
  xaringan::moon_reader:
    css: [default, metropolis, metropolis-fonts]
```

If you want to contribute a theme to **xaringan**, please read [this blog post](https://yihui.name/en/2017/10/xaringan-themes).

---
class: inverse, middle, center
background-image: url(https://upload.wikimedia.org/wikipedia/commons/3/39/Naruto_Shiki_Fujin.svg)
background-size: contain

# Naruto

---
background-image: url(https://upload.wikimedia.org/wikipedia/commons/b/be/Sharingan_triple.svg)
background-size: 100px
background-position: 90% 8%

# Sharingan

The R package name **xaringan** was derived<sup>1</sup> from **Sharingan**, a dōjutsu in the Japanese anime _Naruto_ with two abilities:

- the "Eye of Insight"

- the "Eye of Hypnotism"

I think a presentation is basically a way to communicate insights to the audience, and a great presentation may even "hypnotize" the audience.<sup>2,3</sup>

.footnote[
[1] In Chinese, the pronounciation of _X_ is _Sh_ /ʃ/ (as in _shrimp_). Now you should have a better idea of how to pronounce my last name _Xie_.

[2] By comparison, bad presentations only put the audience to sleep.

[3] Personally I find that setting background images for slides is a killer feature of remark.js. It is an effective way to bring visual impact into your presentations.
]

---

# Naruto terminology

The **xaringan** package borrowed a few terms from Naruto, such as

- [Sharingan](http://naruto.wikia.com/wiki/Sharingan) (写輪眼; the package name)

- The [moon reader](http://naruto.wikia.com/wiki/Moon_Reader) (月読; an attractive R Markdown output format)

- [Chakra](http://naruto.wikia.com/wiki/Chakra) (查克拉; the path to the remark.js library, which is the power to drive the presentation)

- [Nature transformation](http://naruto.wikia.com/wiki/Nature_Transformation) (性質変化; transform the chakra by setting different options)

- The [infinite moon reader](http://naruto.wikia.com/wiki/Infinite_Tsukuyomi) (無限月読; start a local web server to continuously serve your slides)

- The [summoning technique](http://naruto.wikia.com/wiki/Summoning_Technique) (download remark.js from the web)

You can click the links to know more about them if you want. The jutsu "Moon Reader" may seem a little evil, but that does not mean your slides are evil.

---

# Hand seals (印)

Press `h` or `?` to see the possible ninjutsu you can use in remark.js.

![](https://upload.wikimedia.org/wikipedia/commons/7/7e/Mudra-Naruto-KageBunshin.svg)

---

# Thanks!

Slides created via the R package [**xaringan**](https://github.com/yihui/xaringan).

The chakra comes from [remark.js](https://remarkjs.com), [**knitr**](http://yihui.name/knitr), and [R Markdown](https://rmarkdown.rstudio.com).
